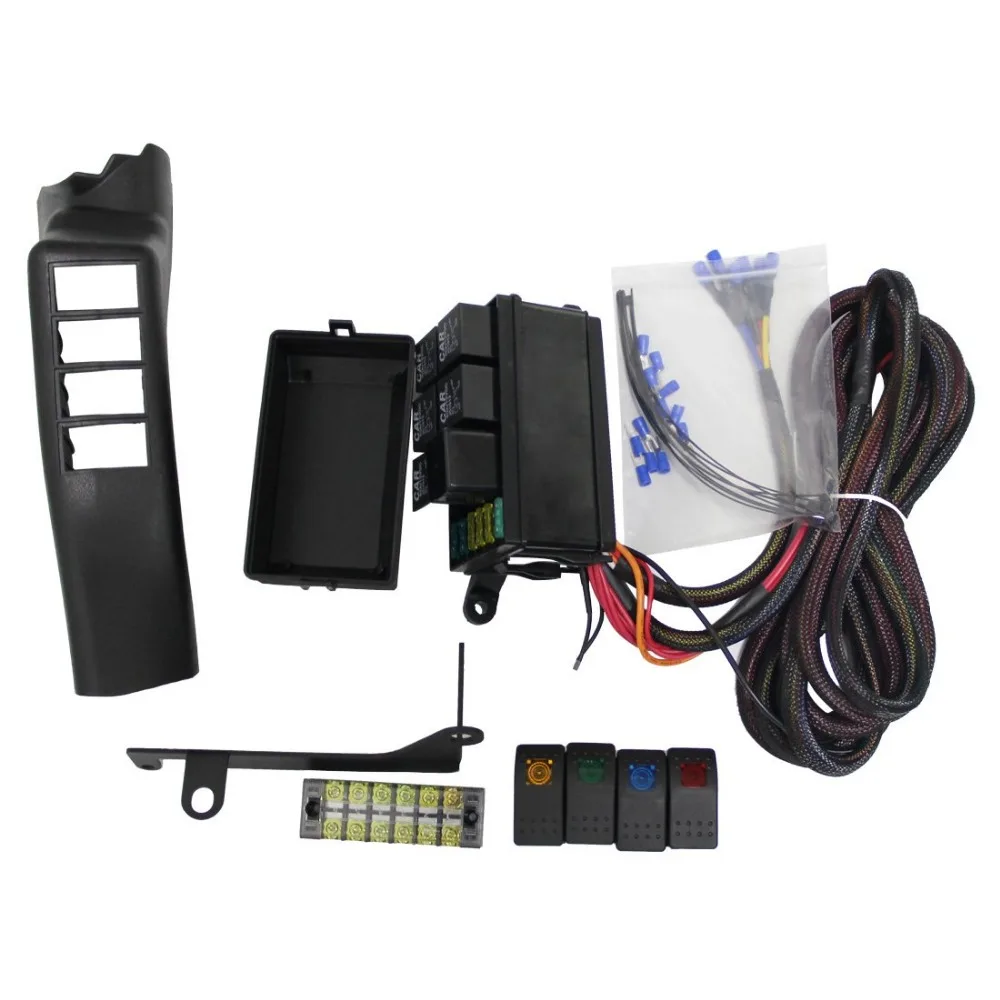

Us 110 99 Pillar Switch Pod With Fuse Relay Box Source Control System Waterproof Black Left Side A Pillar 4 Switch Pod Wire Wiring Harness Car

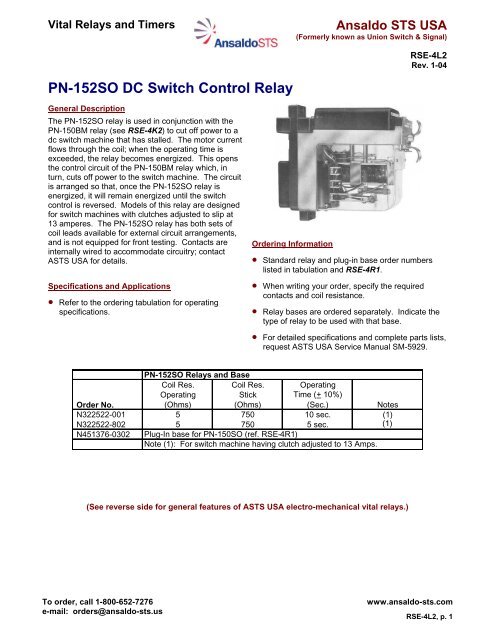

Control side of relay. The relay primary side activation can be done manually example. Set the multimeter to measure voltage connect the black probe to ground and use the red probe on socket terminal 86. The scr starts conducting when a triggering pulse is applied to the gate terminal. Turn off and on power to an accessory. When a relay contact is normally closed nc there is a closed contact when the relay is not energized. A relay is an electrically operated switchit consists of a set of input terminals for a single or multiple control signals and a set of operating contact terminals.
Relays are used where it is necessary to control a circuit by an independent low power signal or where several circuits must be controlled by one signal. Terminals 87 and 30 are the secondary side of the relay which acts as the switch that connects electrical. So relay is a switch which controls open and close circuits electromechanically. Relays are generally used to switch smaller currents in a control circuit and do not. As with most relay related things its best to think about this in terms of low current control side tests and high current load side tests. Onoff control limit control and logic operation.
When the ecm computer commands the fuel pump to turn on it will send an electrical signal to activate the fuel pump relay. Therefore the resistance should be anywhere between 288ω to 352ω. The main operation of this device is to make or break contact with the help of a signal without any human involvement in order to switch it on or off. For example a relay coil may have a resistance of 320ω 10. The switch may have any number of contacts in multiple contact forms such as make contacts break contacts or combinations thereof. In either case applying electrical current to the contacts will change their state.
It is mainly used. Headlight switch on the dash activates the headlight control relay to supply power to the headlights. Relays are discrete devices as opposed to integrated circuits that are used to allow a low power logic signal to control a much higher power circuit. The secondary side of the relay is the switch and does exactly as it is described. The relay isolates the high power circuit helping to protect the lower power circuit by providing a small electromagnetic coil for the logic circuit to control. Open its back cover and.
It can be switched off only by removing the anode current. Turn the circuit on eg turn on the motor flash the headlights beep the horn whatever it is youre testing and verify that 12v is present. As relay diagrams show when a relay contact is normally open no there is an open contact when the relay is not energized. This will come specified with each specific relay used along with the tolerance of the coil. Capacitor c1 has a buffering action at the gate of scr for its smooth working. Dictionary says that relay means the act of passing something from one thing to another the same meaning can be applied to this device because the signal received from one side of the device controls the switching operation on the other side.
This electromagnet is activated by a simple power and ground much like a light bulb circuit. Motor speed control used to disconnect a motor if it runs slower or faster than the desired speed logic operation. You can learn how to test both coil and solid state relays. Test the low current control side. Diode in4007 protects the scr from back emf. So a push to off switch s1 is used to reset the scr.
There are three basic functions of a relay. A relay coils resistance always comes with the datasheet of the relay. The table clock used is the low cost one. Or the relay primary side activation can be done automatically example. Therefore it should read in this range of values when taking the resistance measurement. Consult the din table and the figure above.
Relays control one electrical circuit by opening and closing contacts in another circuit. Test equipment used to connect the instrument to a number of testing points on the device under test types of relays there are. Relay control using clock circuit diagram. Terminals 86 and 85 are the primary side of the relay which utilizes an electromagnet to close connect the secondary electrical circuit inside the relay. Step 9 most relays describe the internal circuit by an illustration on the side of the relay. The scr continues the conduction even if the gate pulse is removed.
