How to wire a 4 way light switch with wiring diagram uses of 4 way switches. A 4 way switch wiring diagram is the clearest and easiest way to wire that pesky 4 way switch.
Wiring A 4 Way Switch
4 way switch wiring. If more than three switches are needed simply place more 4 way switches between the three way switches. Power from light fixture to light switch. Return to location you plan to wire to verify that there is no electric flow to that device. Turn off electric power. Back side of 4 way switch. Wiring a 4 way switch is simply adding a switch to an already existing 3 way switch circuit.

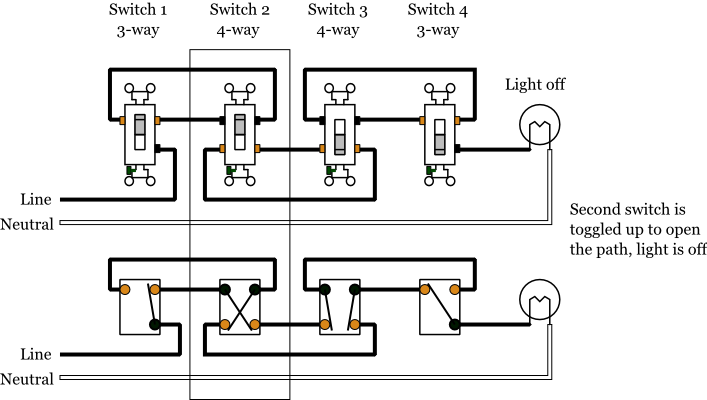

4 way switch wiring 4 way switches provide switching from three or more locations. You would just continue from one 3 way switch box with the 143 three conductor cable two colored traveler wires a white neutral and a bare or green ground wire in and out of each four way switch box. T2 from that switch is wired to t1 on the second 4way and t2 connects to the travelers on sw2. Do you need a 3 way switch wiring diagram. The two 4 ways are located between the two 3 ways and the traveler wires run from sw1 to t1 on the first 4 way. Starting with safety and understanding 1.
I have a few of the most common ways in wiring a 4 way switch to help you with your basic home wiring projects. Turn on the light or device being controlled by the 3 way switches if you already have them. If the device is still. The white wires get spliced through. 4 way switch wiring with four switches here two 4 way and two 3 way switches are used to control lights from four different locations. This allows you to control a load from other locations in addition to the 2 locations that a 3 way circuit provides.
In some countries the four way is called an intermediate switch. There are 4 places to terminate wire plus a green screw at the top of the. As you will see most 4 way switch wiring is placed between the wiring of two 3 way switches therefore a 4way switch is installed with two 3way switches. First of all we need to go over a little basic terminology on switches. That is to say that any time you find a 4 way switch there will also be two 3 way switches.
